Navtech Systems

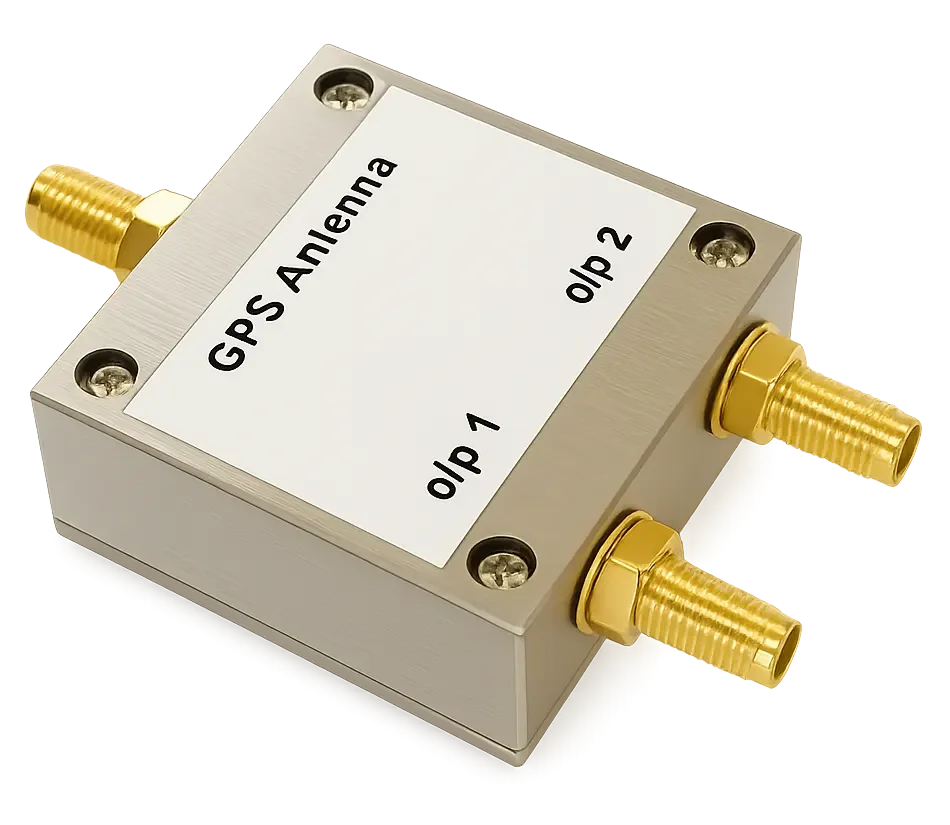

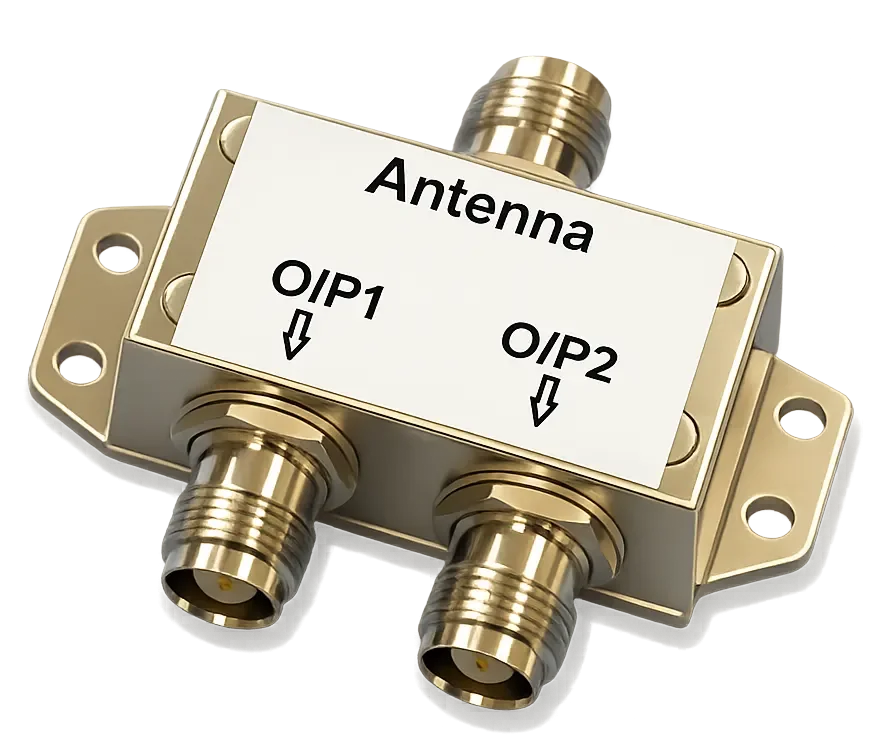

GNSS Dual Splitter (NTS-DP2)
Miniature 2-Way GNSS Splitter
Model: NTS-DP2-xx / NTS-DP2-TNC
Outputs: 2 Outputs (O/P 1, O/P 2)
Product Overview
The Navtech GNSS Antenna Splitter NTS-DP2-xx enables two GPS/GNSS receivers to share a single antenna.
Key Features
Amplified Signals: Uses a combined low noise amplifier and power by-pass circuitry to supply amplified signals to one or both connected receivers.
Active Antenna Support: Antenna power supplied by the GNSS receiver is by-passed to the antenna, allowing active antennas to be used as the primary signal source.

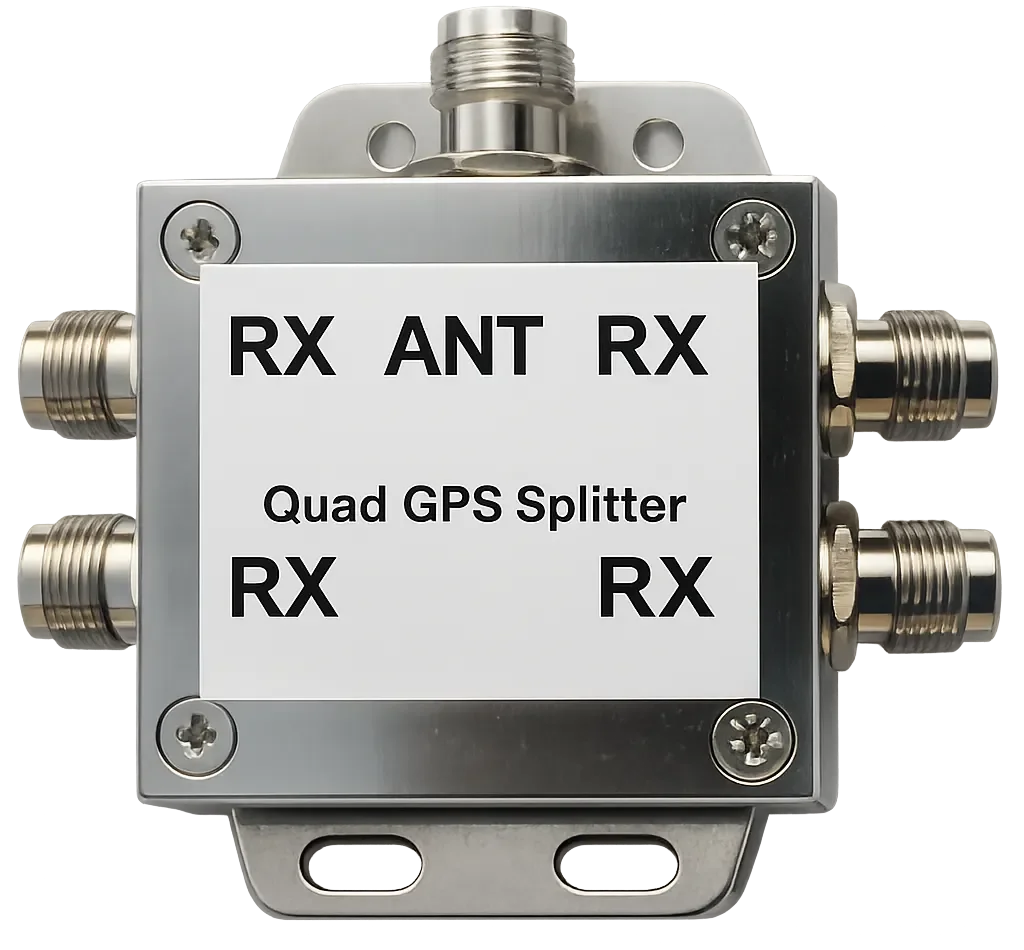

GNSS Quad Splitter (NTS-DP4)
4-Way GNSS Splitter
Model: NTS-DP4 / NTS-DP4-TNC / NTS-DP4-L1.2
Outputs: 4 Outputs (RX 1 to RX 4)
Product Overview
The Navtech Quad GPS antenna splitter NTS-DP4-L1.2 enables up to four GPS/GNSS receivers to share a single antenna.
Key Features
Dual-Band Support: Supplies amplified signals to connected receivers at both the L1 & L2 GNSS carrier frequencies.
Power By-Pass & Isolation: Uses a combined low noise amplifier and power by-pass circuitry. Antenna power supplied by diode isolation from any GPS/GNSS receiver is by-passed to the antenna to support active antennas.

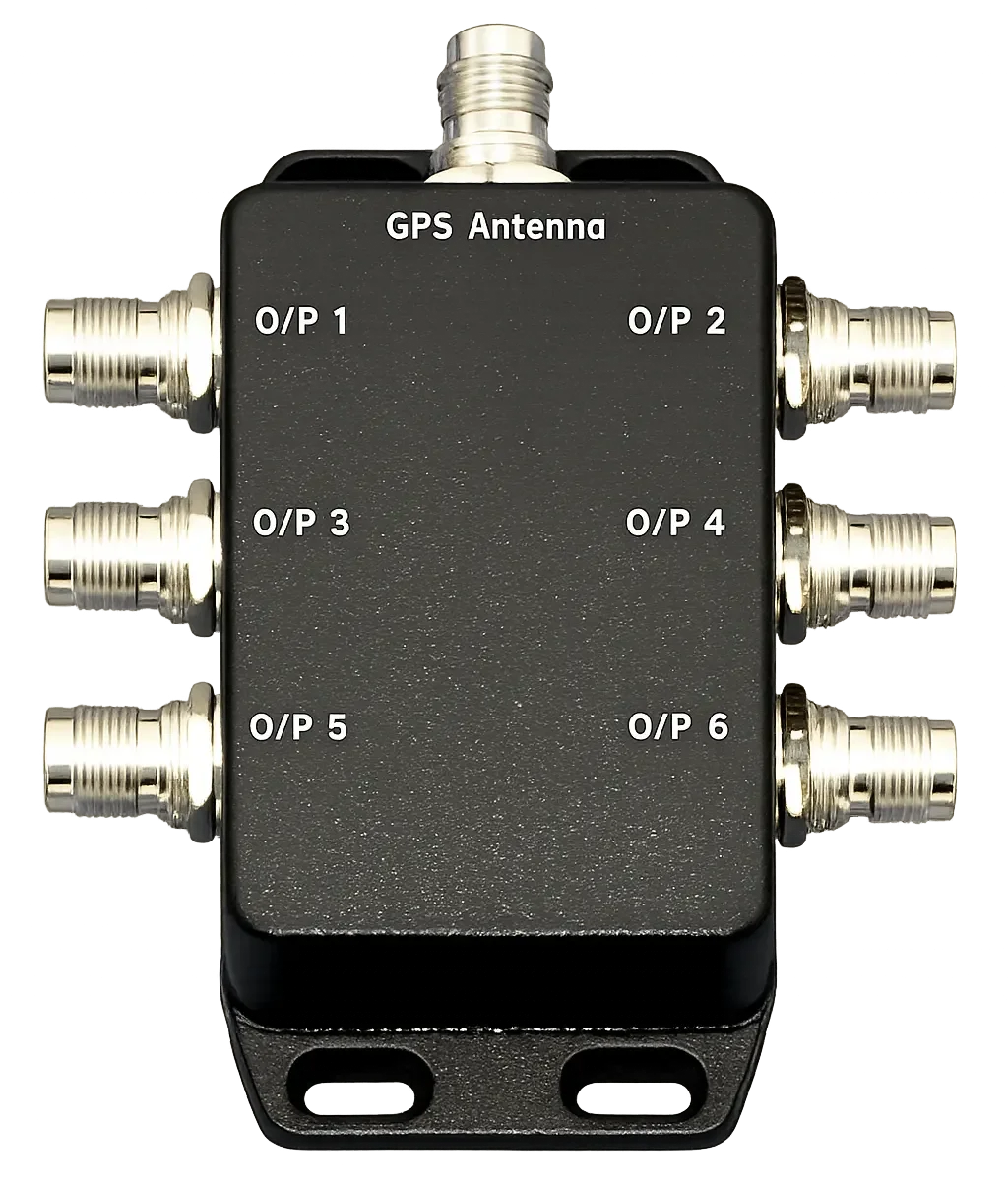

Hex GNSS Splitter (NTS-DP6)
6-Way GNSS Splitter
Model: NTS-DP6-(L1.2)
Outputs: 6 Outputs (O/P 1 to O/P 6)
Product Overview
The Hex GNSS Splitter NTS-DP6-(L1.2) enables a single GNSS antenna to be used by up to six independent GNSS receivers.
Key Features
Wideband Amplifier: Incorporates a low noise amplifier covering the GNSS frequency band.
Flexible Powering: Power for the antenna and amplifier is derived through any input.
Receiver Signal Integrity: All inputs are terminated with a 200R load to provide correct antenna current signals to the respective GNSS receivers.
Connectivity Options: Available with TNC or SMA connectivity.
Specifications & Ordering
Brochures: Available upon request for all models.
Manufacturer: NES Ltd. / NTS (ta).
