Navtech Systems

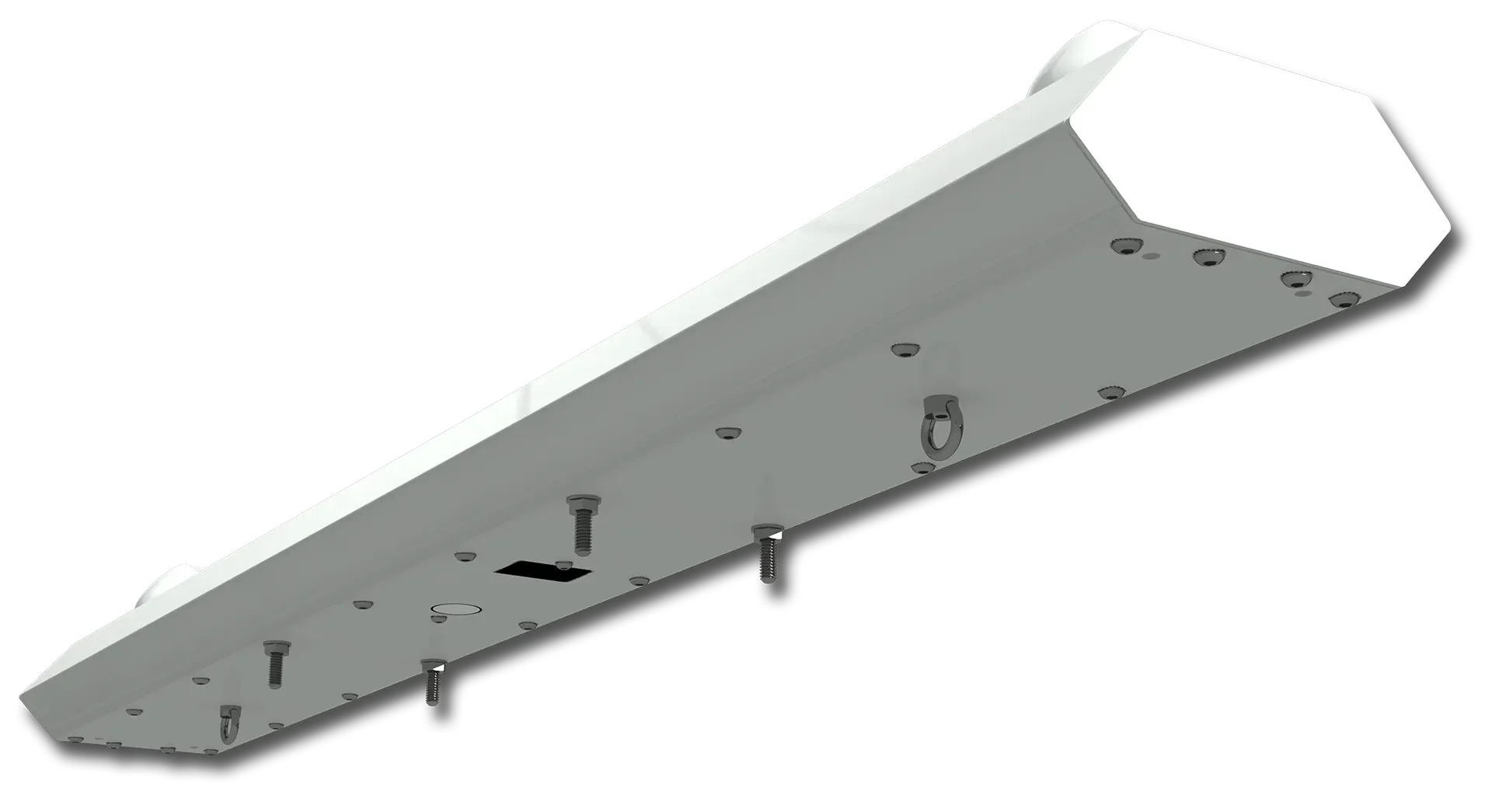

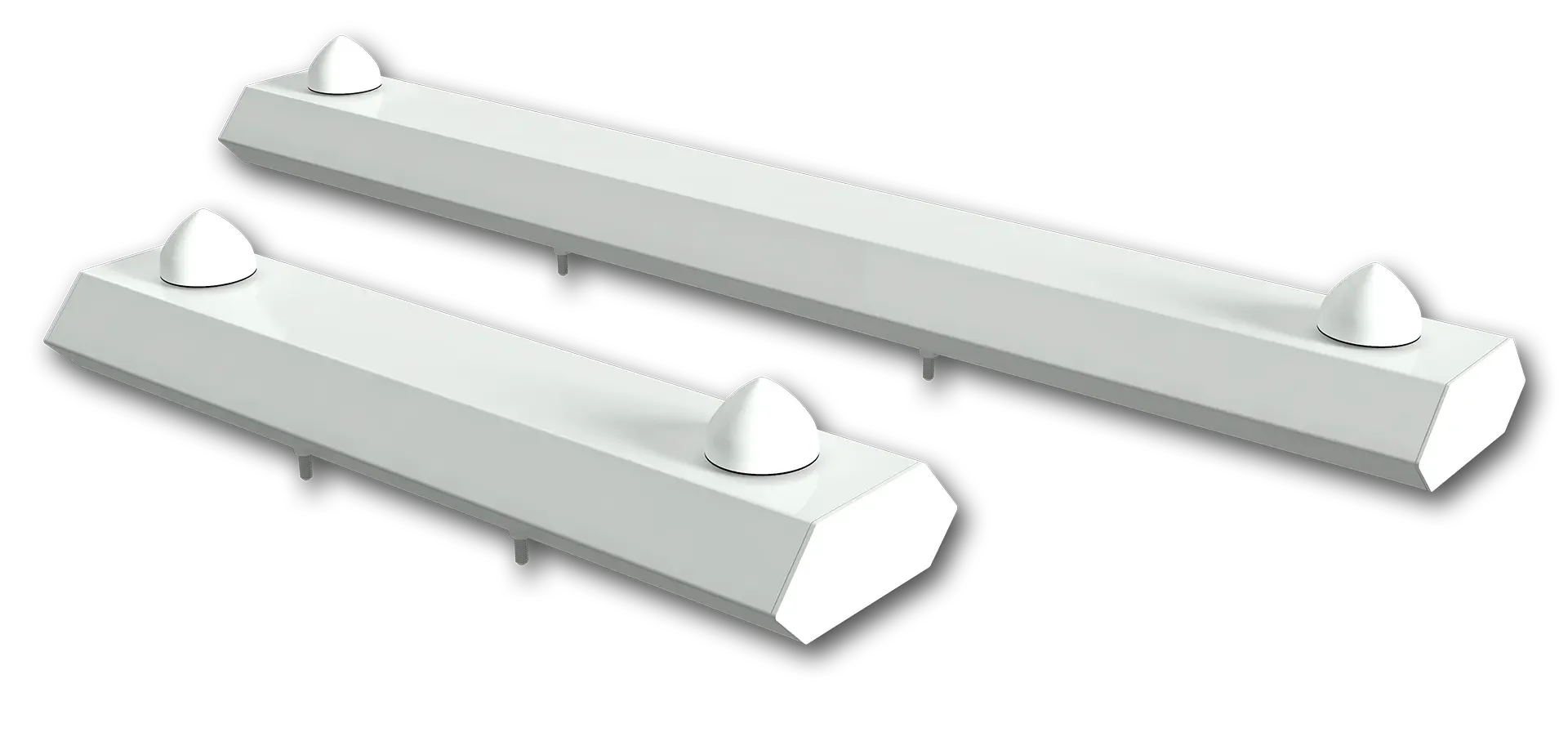

AERO-PRO Compass

Miniature High-Accuracy GNSS Attitude Sensor

  • System Name: Navtech NTS AERO-PRO Compass

  • Satellites Supported: GPS, GALILEO, GLONASS, & BeiDou

Product Overview

The Navtech NTS AERO-PRO Compass systems provide TRUE heading by utilizing multi-constellation satellite tracking.

Key Features

  • Comprehensive Attitude Sensing: Combines a high-accuracy Pitch & Roll tilt sensor with integrated turn rate sensing (gyro aiding).

  • High Precision Measurements: Provides highly accurate pitch, roll, and yaw (heading) data, delivering stable accuracies to better than 0.1 degrees in pitch and roll.

  • Enhanced Position Accuracy: Achieves a positioning accuracy of better than 1 meter through standard SBAS tracking.

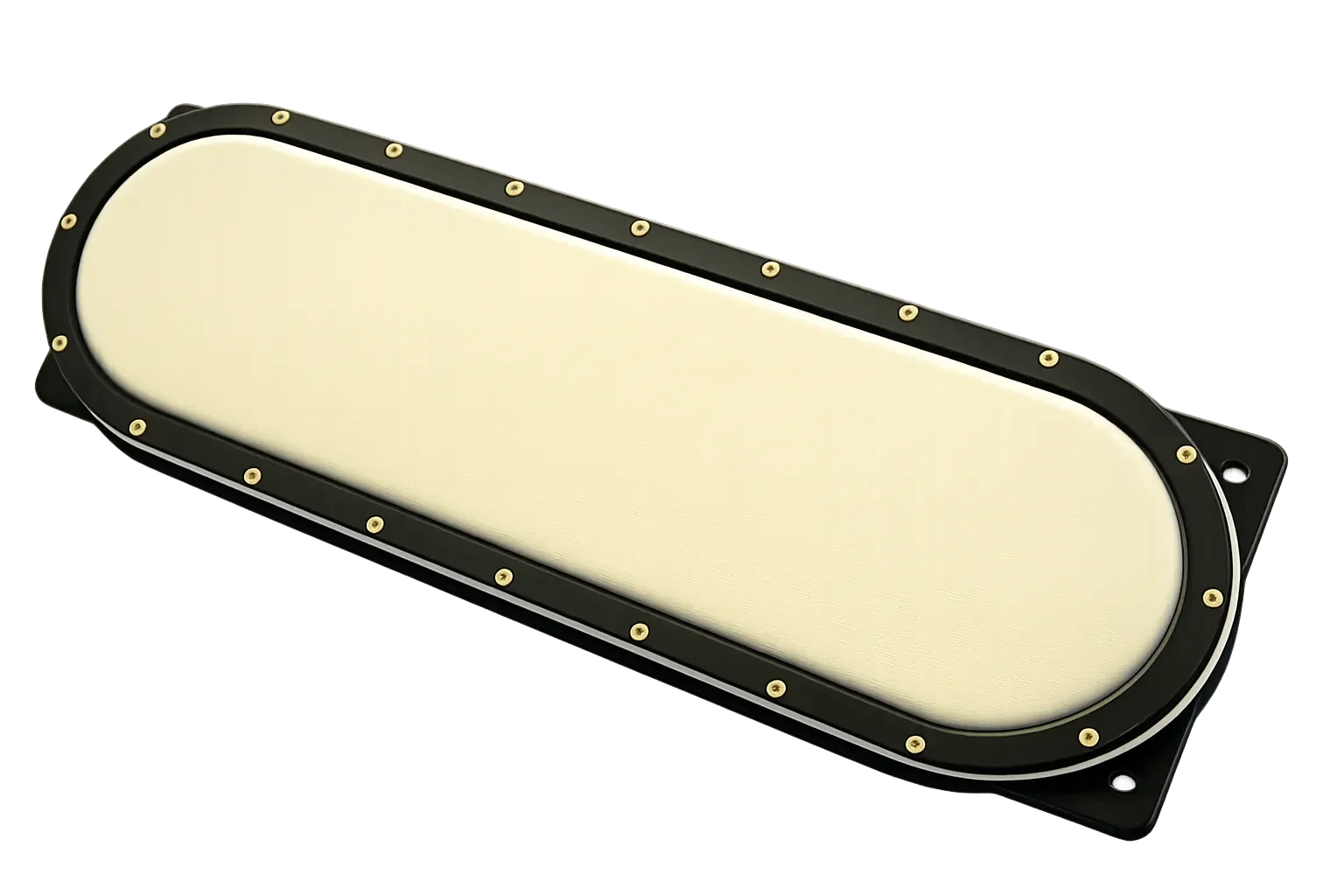

NTS-HX102 & PRO Compass

Low-Profile Waterproof GNSS Compass Module

  • Model: NTS-HX102-PRO (NTS-HX Series)

  • Satellites Supported: GPS, GALILEO, GLONASS, & BeiDou

Product Overview

The Navtech NTS-HX series consists of low-cost, low-profile, fully waterproof GNSS Compass modules designed to provide TRUE heading directly from satellite tracking.

Key Features

  • PRO Attitude Sensing: Equipped with advanced PRO features for comprehensive data capture.

  • 'Cruise' Inertial Feature: Provides an uninterrupted inertial heading baseline if the primary satellite-derived heading signal is temporarily lost.

  • Anti-Dropout Protection: Features a highly stable inertial azimuth gyro in the POR sensor to seamlessly maintain heading outputs during brief drop-out windows.

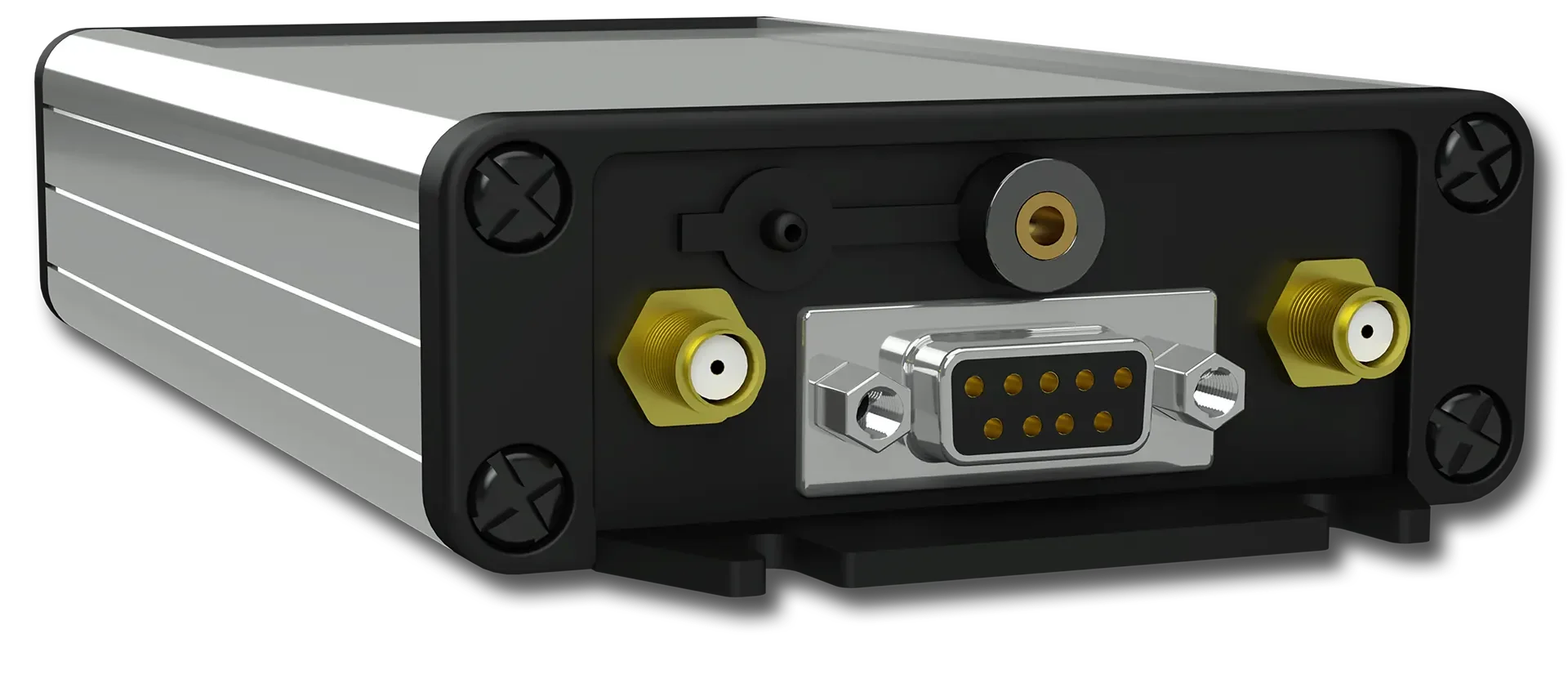

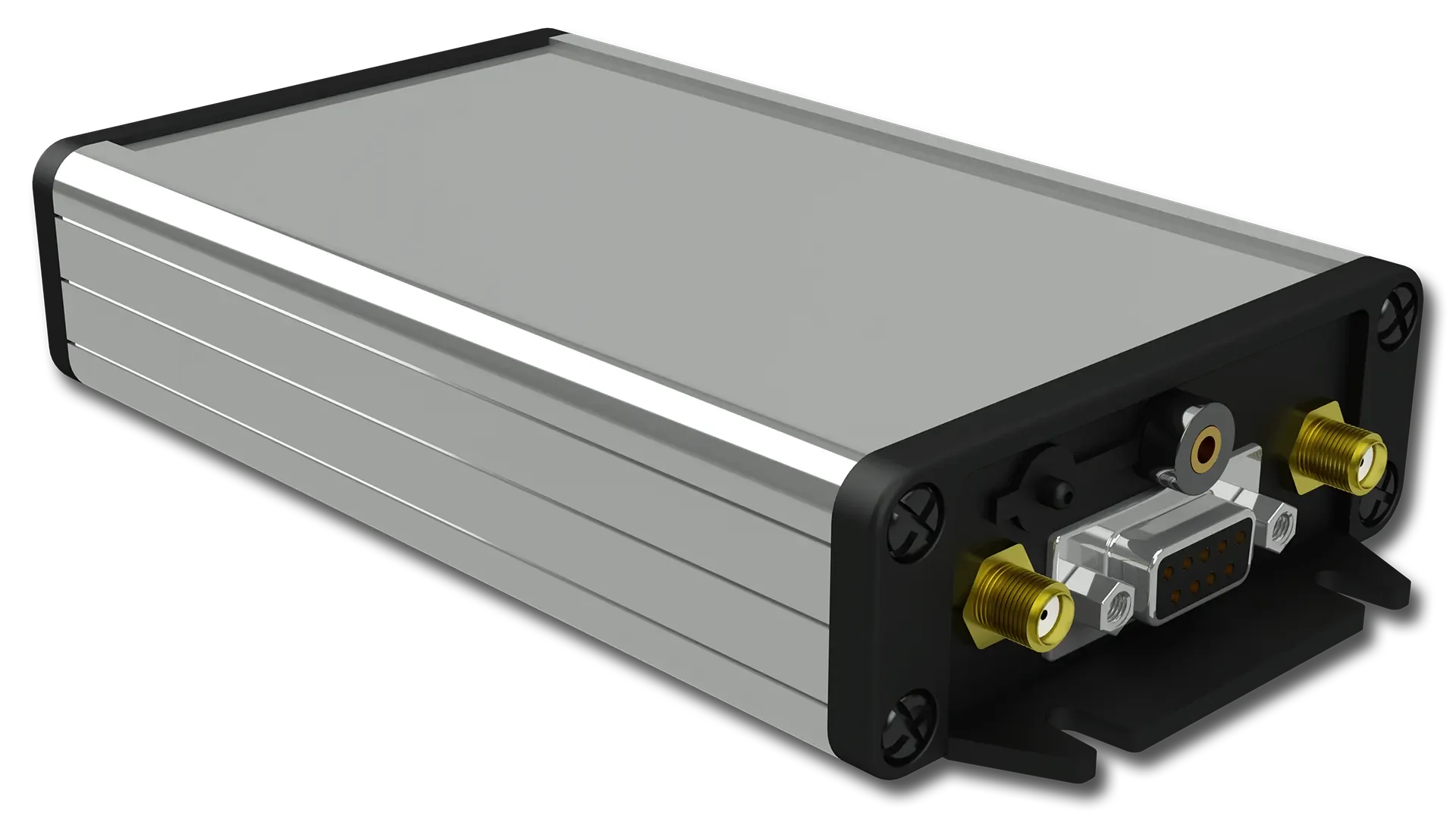

NAVPRO-INS & Compass

Dual-Antenna Waterproof GNSS Compass & Inertial Navigation Module

  • Model: NTS-NAVPRO-INS

  • Satellites Supported: GPS, GALILEO, GLONASS, & BeiDou

Product Overview

The Navtech NAVPRO-INS & Compass is a low-cost, low-profile, and waterproof GNSS Compass module. It calculates TRUE heading by utilizing two highly selective antennas separated across a customizable 0.2-to-5-meter baseline.

Key Features

  • Exceptional Heading Precision: Achieves heading accuracies to better than $0.5^{\circ}$ RMS when utilizing the dual GNSS antenna array.

  • 'Cruise' Inertial Backup: Includes PRO attitude sensing alongside the specialized 'Cruise' feature to generate real-time inertial heading if satellite locks are broken.

  • Gyro Stabilization: Employs a highly stable inertial azimuth gyro within the POR sensor to protect data output and bridge brief signal drop-out periods.
